Water cooled Furnace Power Cables Manufacturer & Exporter



Water cooled Furnace Power Cables

Water cooled Furnace Power Cables are mainly using for connecting Induction Furnace, Arc Furnace, Melting Furnace and Ladle Furnace. In these cables are continuously flowing water and high current hence 100% safety to operator.


Configuration

Water cooled cables are normally designed according to the capacity of the furnaces. The size of the main conductor is directly proportional to the tonnage capacity of the furnace. The main power core consists of pure Electrolytic Grade (min 99.9% purity) of multilayer bunched stranded copper conductor. These bunched conductors are centrally separated to prevent restriction of water flow. Furthermore copper / bronze separators are placed at regular intervals.

The main central core is covered by neoprene rubber carbon free hose, which is again asbestos/ceramic glass insulated to withstand high temperature, as faced in these critical areas. The cable is end socket by forged electrolytic grade 99.9% purity copper lugs available as per site application.


  • Electrolatic grade copper conductor for low Power Loss.
  • Copper conductor of 99.9% conductivity.
  • End connection of lead free brass, this gives long last.
  • All M/C parts made from lathe and milling machines ensure zero error.
  • Good quality of carbon free rubber hose.
  • Proper crimping of conductor by high pressure hydraulic press.
  • Stainless steel heavy duty hose clamp at hose end.
  • Hydro tested cable.
  • We undertake repairing of cable also.
  • Manufacturing cable using our engineering expertise.
  • Best price in INDIA.

  • Water cooled Furnace Power Cables
    Water cooled Furnace Power Cables

    Exclusive design and construction of high current water cooled power cables resulting in longer life, greater flexibility and increased water flow at reduced pressures. Our water cooled coaxial cables are designed and fabricated to provide the lowest possible inductive reactance of any secondary flexible connector available.


    We provide water cooled cables in a standard construction rope lay design and an exclusive concentric construction design.We offers several hose cover options that include abrasion protection covers, splash covers and thermal protection covers. Additional options available include various terminal designs. Our water cooled cable sizes range from small jumpers for resistance welding applications up to 20,0000 MCM cables that are used in electric steel making furnaces.


    All our flexible power cables are designed and assembled to customer specifications for maximum power and reliability applications that demand a robust cable construction needed for maximum efficiency and long cable life.


    CUSTOMIZABLE INDUSTRIAL HOSE OPTIONS

    Custom Industrial Hose and Tubing Sizes

    Hose ID

    Lengths

    3/8”to 12”

    Up to 50ft

    4”to 24”

    Upto 24ft

    6”to 40”

    >Upto 20ft

    AVAILABLE HOSE MATERIAL OPTIONS
  • Pure Gum Rubber
  • SBR (Styrene Butadiene) Rubber
  • Neoprene
  • Viton®
  • ChloroButyl
  • Hypalon
  • Nitrile
  • Silicone Food and Drug Administration (FDA) food grades are also available
  • ADDITIONAL HOSE FEATURES
  • Enlarged Ends - Hose end enlargement to accommodate fitting
  • Soft Cuffs - Reinforcement removed from end of hose to create a leak proof seal when clamped
  • Straight - Hose end cut straight with no end connection
  • Rubber Lined - Adds abrasion resistance and extended lift
  • Built In Fixed/Floating Flanges - Built in, expanded; 150-300 pound ANSI forged
  • Built In Nipple - Built into hose during fabrication to provide the most holding power and full flow unrestricted transition area
  • Cover Style - Smooth or corrugated designs for flexible applications
  • Electrical Conductivity Compounds - Materials designed to meet your electrical requirements
  • Heat Resistance Compounds - Available compounds that provide outstanding thermal protection
  • Oil Resistance - RMA tube compounds


  • Water cooled Furnace Power Cables Hoses
    Water cooled Furnace Power Cables Hoses
    Water cooled Furnace Power Cable hose

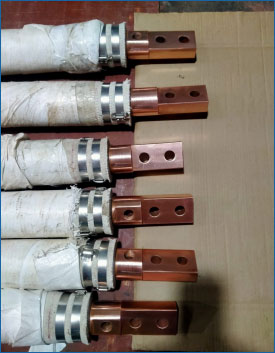

    Water cooled Furnace Power Cables

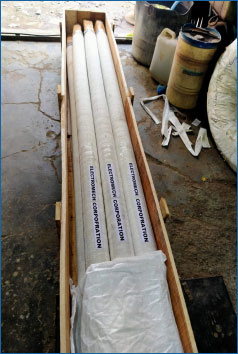

    Water cooled Furnace Power Cables
    Water cooled Furnace Power Cables
    Water cooled Furnace Power Cables
